Dobinsons Pre-Assembled IMS Height Adjustable Front Lift to suit Isuzu D-Max 2012-2020

DETAILS

Dobinsons Pre-Assembled IMS Height Adjustable Front Lift (Non Remote Reservoir) to suit Isuzu D-Max 2012-2020

- A 100mm Lift is achievable with extra components. A 100mm Lift will most likely NOT pass a NZ certification as this will decrease the suspension droop travel, it is up to the customer to set these any higher than a 75mm Lift.

- You must use a ball joint spacer or UCA with this front lift kit to achieve more than 40mm of Lift - Please See Ball Joint Spacers HERE

Looking for a quick and easy lift for your D-Max? We have the answer!

Simply unbolt your factory struts and replace with these direct bolt-in front pre-assembled adjustable shocks.

Please use the drop down menu to select your lift amount and the correct spring rates depending on your vehicles accessories.

Type: D-Max
Model: TFS85
Year: 05/2012 - Mid 2020
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 20mm - 75mm Lift
Detail:
- Monotube Internal Reservoir Shock Absorbers
- These front struts are pre-assembled in our workshop and ready to go.

COMPONENTS

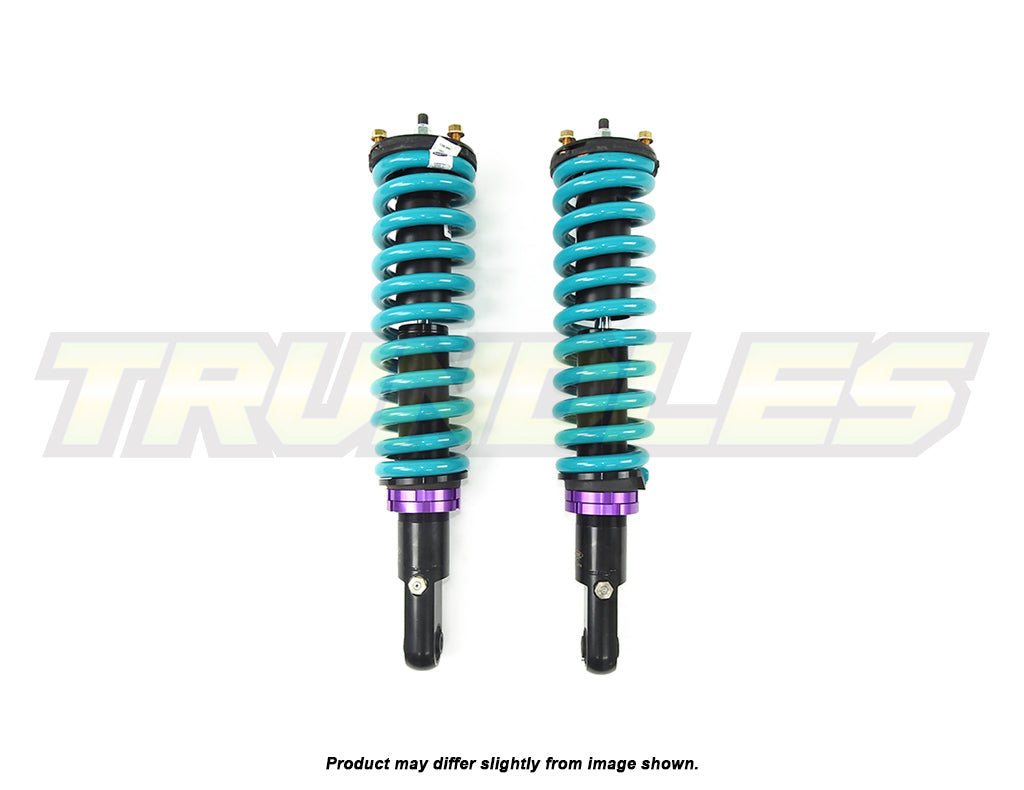

2x Front IMS Shocks - IMS21-50470 / IMS21-50472
1x Pair Dobinsons Front Coil Springs
2x Trundles Strut Top Mounts - TOP10

EXTRAS

For a lower replacement bush to fit IMS21-50470, please click here
