28522 | Profender 40mm Lift Kit with Adjustable Damping to suit Mazda BT-50 Series II 2011-2020

DETAILS

Profender 40mm Lift Kit with Adjustable Damping to suit Mazda BT-50 Series II 2011-2020

These shocks have 4-Stage Adjustable Damping and are fixed height only.

Suits 4x4 Models Only.

Please use the drop down menu to select the correct spring rates depending on your vehicles accessories.

Type: BT-50
Model: UP/UR
Year: 10/2011 - Mid 2020
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 40mm - 55mm Lift
Rear Lift: 40mm - 60mm Lift
Detail:

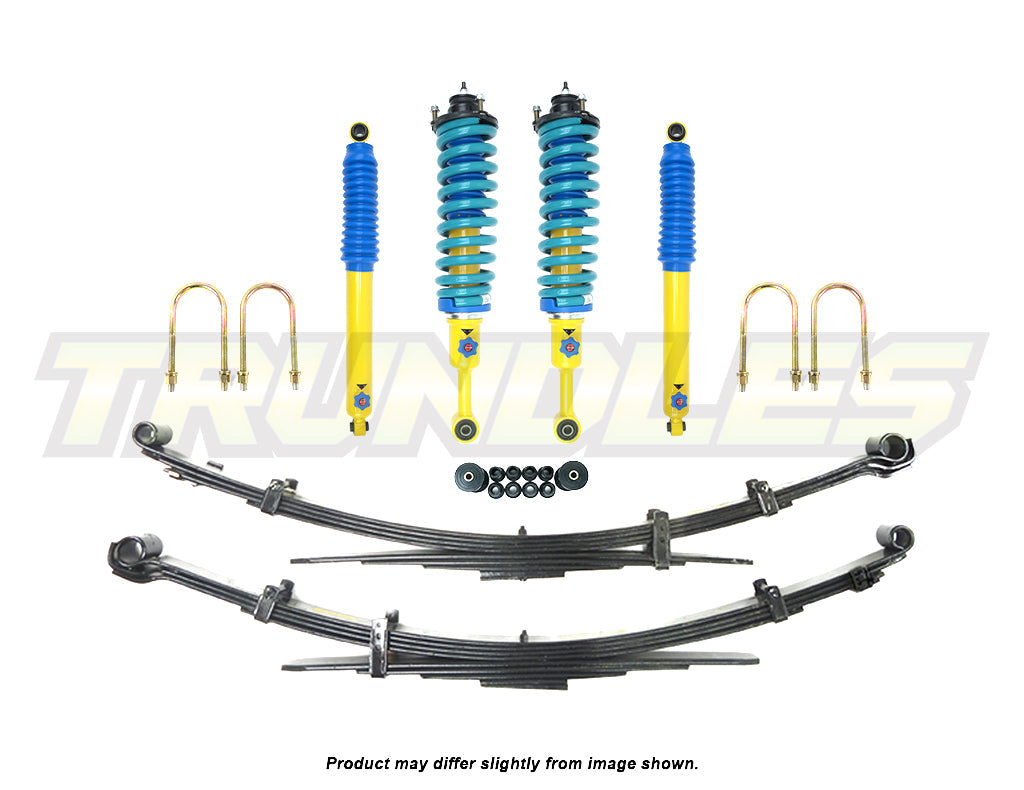

- Twin Tube Adjustable Damping Shock Absorbers
- Front shocks come pre-assembled for ease of installation.

COMPONENTS

Front:
2x Profender 4-Stage Damping Front Shocks - PAG-1603A50
1x Pair Dobinsons Front Springs
2x Trundles Strut Top Mounts - TOP3

Rear:
2x Profender 4-Stage Damping Rear Shocks - PAG-4045P
2x Dobinsons Rear Leaf Springs
1x Dobinsons Leaf Bush Kit - PB19-1104K
2x Dobinsons U-Bolt Kits - UB21-466K

EXTRAS

Dobinsons Rear Greasable Shackles - SK19-058
Dobinsons Rear Greasable Pins - SP59-060
Trundles Bolt In Diff Drop - MAZ-007
Tail Shaft Spacer Kit - TSS001

IMPORTANT!

The stock Upper Control Arms can hit the chassis seam on droop in some models.
With the vehicle on the ground, you can remove the top hat crush tube and shorten it around 10mm then refit. This in turn can shorten the shock extended length to give clearance - Some top hats have a longer crush tube which seems to be the cause of this.
