Profender 75mm MRA Lift Kit to suit Ford Ranger PX1/2 2011-2018

DETAILS

Profender 75mm MRA Lift Kit to suit Ford Ranger PX1/2 2011-2018

Suits 4x4 Models Only.

If you are chasing a level look, we recommend 40mm rear springs.

- Anodising colours may vary between shocks due to available stock.

Please use the drop down menu to select the correct spring rates depending on your vehicles accessories.

Type: Ranger
Model: PX1/2
Year: 08/2011 - Mid 06/2018
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 75mm Lift
Rear Lift: 40mm-75mm Lift
Detail:
- 4x4 Strut Mounted Front Bump Stop Models Only
- Turn-Key Start Models Only
- Also Suits 4x2 High-Rider
- Monotube Remote Reservoir Shock Absorbers
- Front struts come pre-assembled for ease of installation.

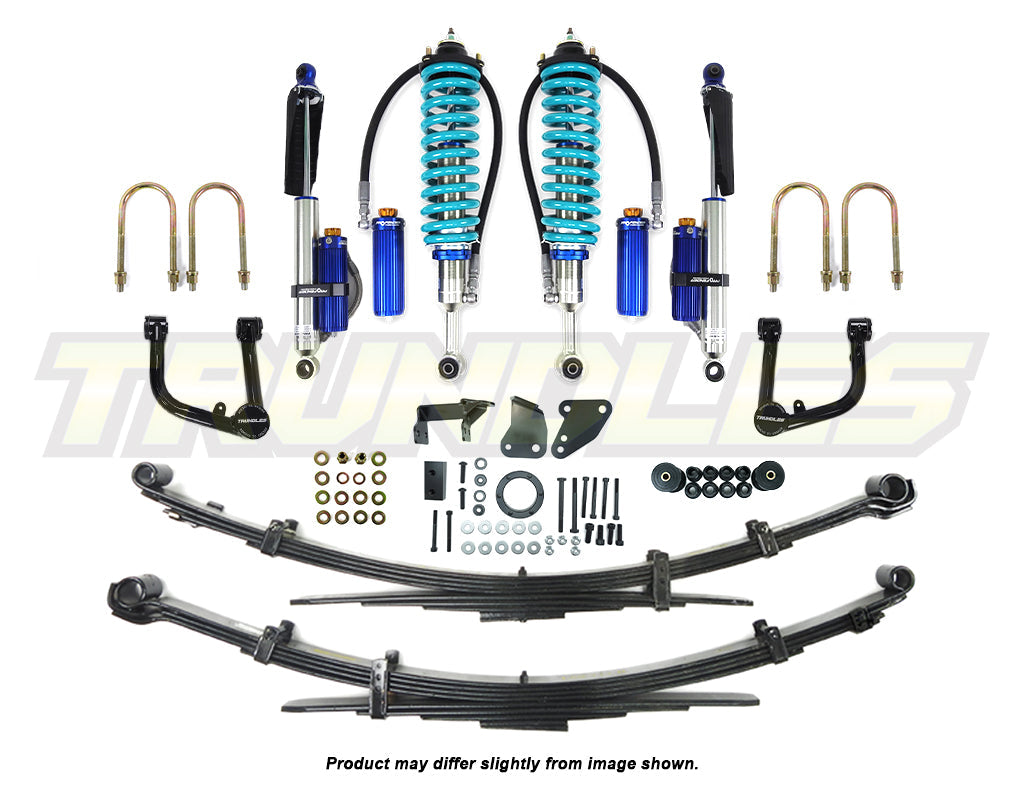

COMPONENTS

Front
1x Profender MRA Left Front Shock Absorber - TSA4-1603A50L
1x Profender MRA Right Front Shock Absorber - TSA4-1603A50R
1x Pair Dobinsons Front Springs
4x Spring Seat Spacers - see below "Included Spring Seat Spacers" section for more details
2x Removable Spring Seats
2x Trundles Strut Mounts - TOP3
1x Pair Trundles Upper Control Arms - UCA3957R
1x Trundles Bolt In Diff Drop - MAZ-007

Rear
1x Profender MRA Left Rear Shock Absorber - PHMA-4045PL
1x Profender MRA Right Rear Shock Absorber - PHMA-4045PR
2x Dobinsons Rear Leaf Springs
1x Dobinsons Leaf Bush Kit - PB19-1104K
2x Dobinsons U-Bolt Kits - UB21-466K
1x Tail Shaft Spacer Kit - TSS001

EXTRAS

Dobinsons Rear Greasable Shackles - SK19-058
Dobinsons Rear Greasable Pins - SP59-060

Included Spring Seat Spacers

Profender front shocks for IFS vehicles are supplied with spring seat spacers (collars). These collars fit beneath the spring seat and can be used to increase spring preload and vehicle ride height if additional lift is required in the future.

When you order a pre-assembled strut from us, you do not need to install these collars before fitting the strut. Your struts are assembled to your requested ride height and load rating using a correctly specified coil spring.

If you are ordering shocks only to use with an existing lifted coil spring, you also do not need to install the collars, provided your current springs are correctly specified.

Installing these collars will increase the ride height of your supplied strut. As a guide, the 10 mm collar will typically provide approximately 15 mm of additional vehicle lift, although actual lift will vary depending on vehicle weight, accessories, and spring rate.

The collars are supplied separately and are not required for standard installation.

New Zealand Compliance Notice: If these collars are fitted to alter the spring seat height and increase ride height, LVV certification will be required before the vehicle can be legally used on the road. Customers should consult an LVV certifier before installation.

Shocks installed without the spring seat spacers are generally treated as direct replacement suspension components and typically do not require LVV certification.
