32531 | Profender MRA Lift Kit to suit Mazda BT-50 Series II 2011-2020 - FREE SHACKLES!

DETAILS

ON SPECIAL NOW!! $2871 RRP NOW ONLY $2600! INCLUDES FREE REAR EXTENDED SHACKLES! GET IN QUICK!

Looking for a quick and easy lift for your BT-50? We have the answer!

A 100mm Lift is achievable with extra components. A 100mm Lift will most likely NOT pass a NZ certification as this will decrease the suspension droop travel, it is up to the customer to set these any higher than a 75mm Lift.

NOTE: Anodising colours may vary between shocks due to available stock.

Please use the drop down menu to select your model type and correct spring rates depending on your vehicles accessories.

Type: BT-50
Model: UP/UR
Year: 10/2011 - Mid 2020
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 75mm Lift
Rear Lift: 40mm - 60mm Lift
Detail:

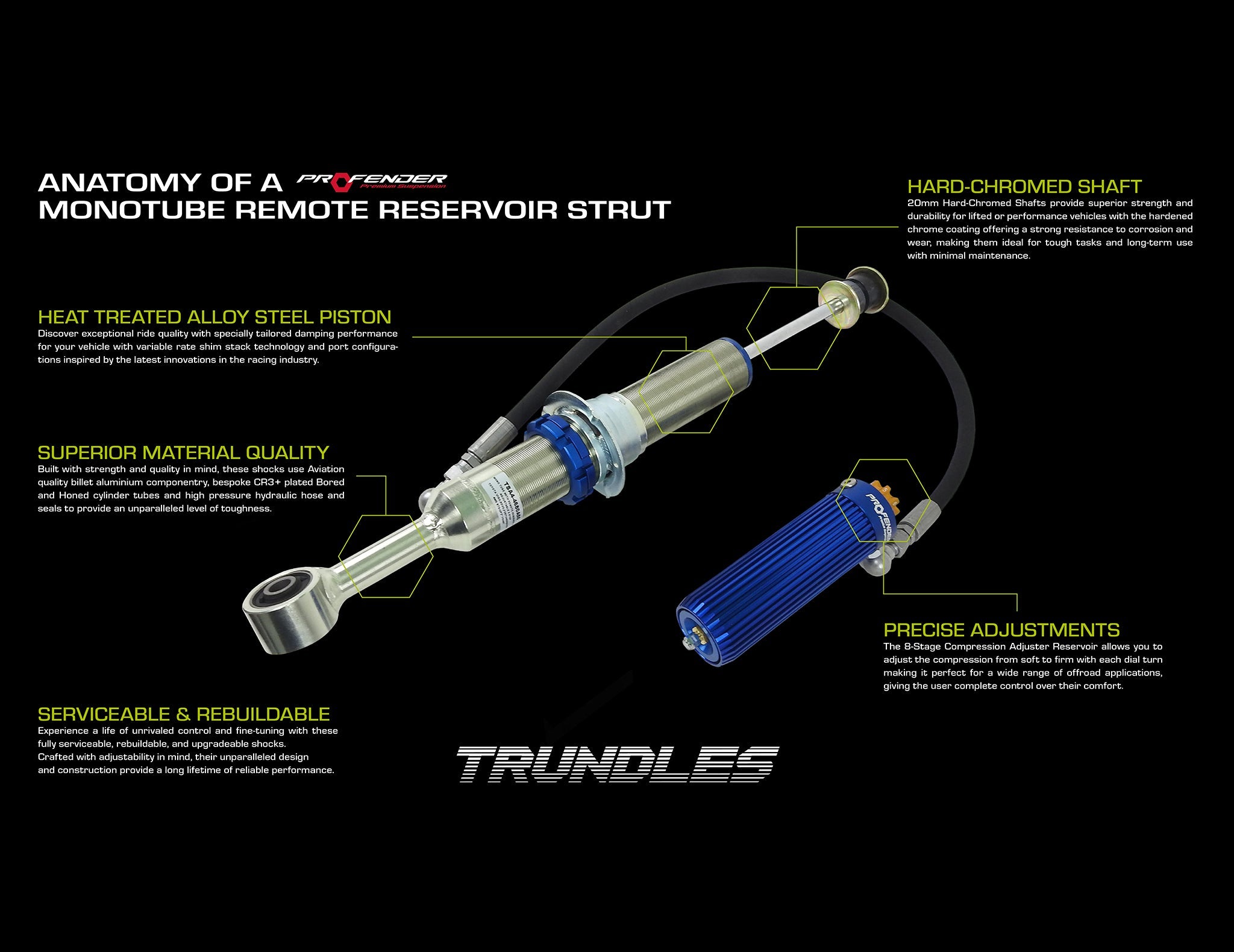

- Monotube Remote Reservoir Shock Absorbers

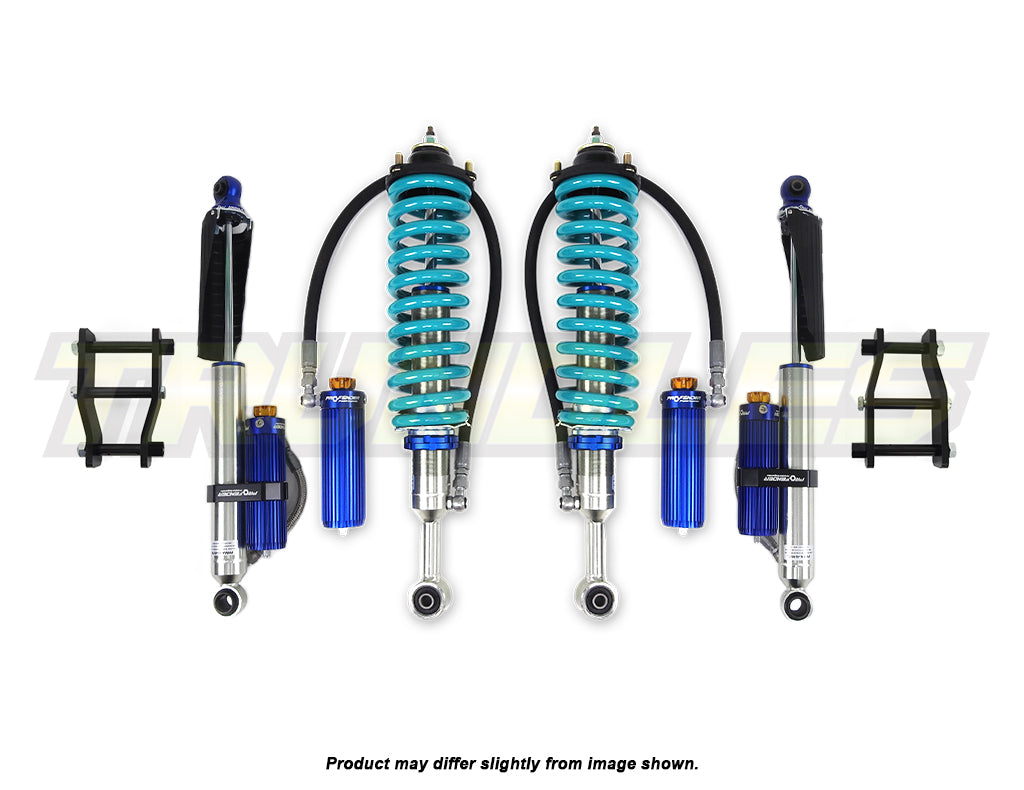

COMPONENTS

Front
1x Profender MRA Left Front Shock Absorber - TSA4-1603A50L
1x Profender MRA Right Front Shock Absorber - TSA4-1603A50R
1x Dobinsons Springs
2x Trundles Strut Top Mounts - TOP3

Rear
1x Profender MRA Left Rear Shock Absorber - PHMA-4045PL
1x Profender MRA Right Rear Shock Absorber - PHMA-4045PR
1x Pair Trundles 50mm Lift Extended Shackles - EXTSH-12

EXTRAS

Dobinsons Rear Greasable Pins - SP59-060
Trundles Bolt In Diff Drop - MAZ-007
Tail Shaft Spacer Kit - TSS001
Upper Control Arms - UCA3957R

IMPORTANT!

The stock Upper Control Arms can hit the chassis seam on droop in some models.
With the vehicle on the ground, you can remove the top hat crush tube and shorten it around 10mm then refit. This in turn can shorten the shock extended length to give clearance - Some top hats have a longer crush tube which seems to be the cause of this.
