Profender MRA Height Adjustable Lift Kit to suit Isuzu D-Max 2012-2020 - FREE EXTENDED SHACKLES!

DETAILS

ON SPECIAL NOW!! $2811 RRP NOW ONLY $2580! INCLUDES FREE REAR EXTENDED SHACKLES! GET IN QUICK!

Looking for a quick and easy lift for your D-Max? We have the answer!

Simply unbolt your factory struts and replace with these direct bolt-in front pre-assembled shocks.

- It is up to the customer to set these any higher than a 75mm Lift.

- You must use a ball joint spacer or UCA with this front lift kit to achieve more than 40mm of Lift - Please See Ball Joint Spacers HERE

- Anodising colours may vary between shocks due to available stock.

Please use the drop down menu to select your lift amount and the correct spring rates depending on your vehicles accessories.

Type: D-Max
Model: TFS85
Year: 05/2012 - Mid 2020
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 20mm - 75mm Lift
Rear Lift: 50mm Lift
Detail:

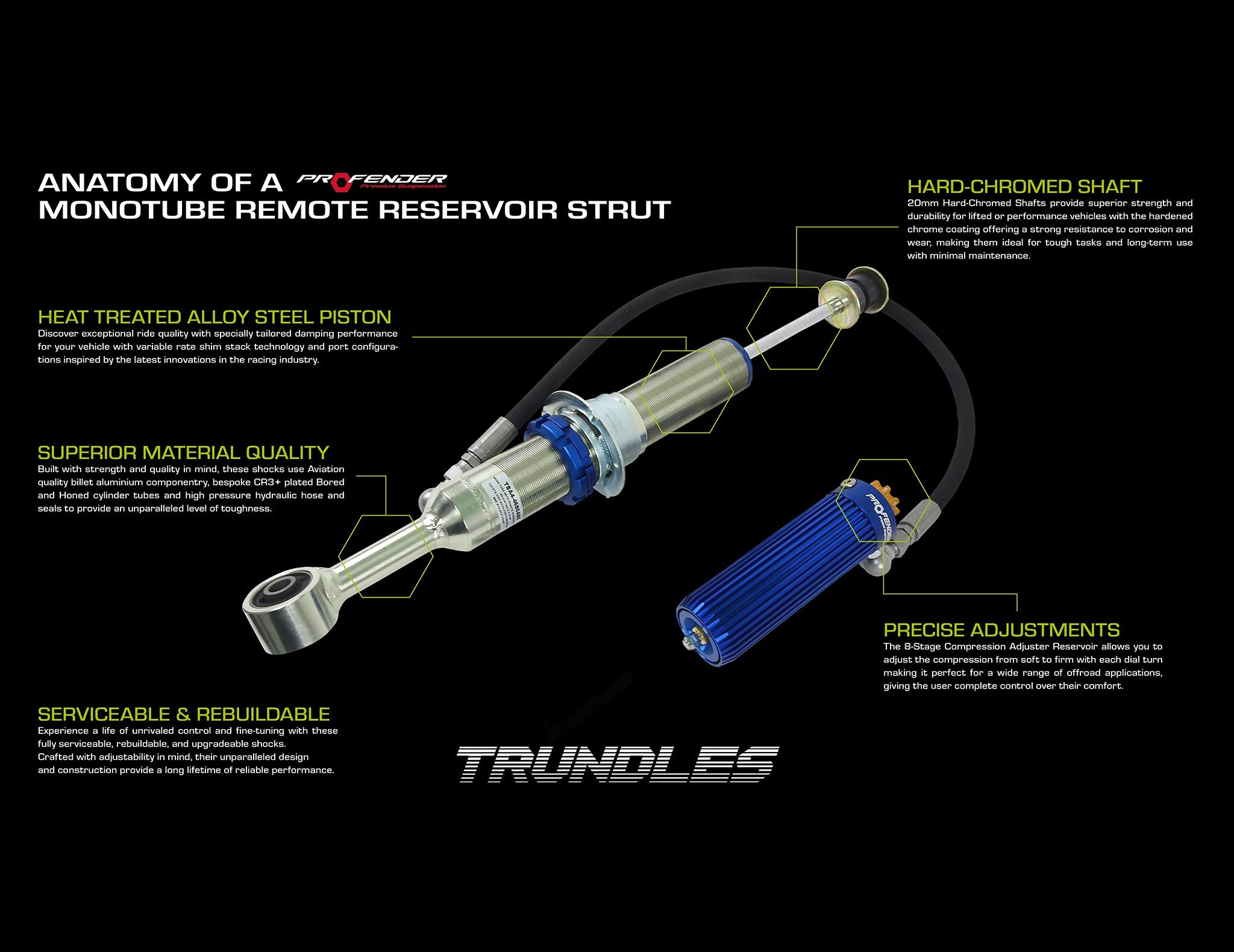

- Monotube Remote Reservoir Shock Absorbers
- 8 Stage Adjustable Damping.
- Adjustable Spring Seat to allow fine tune lifting.
- Free Extended Lift Shackles to even out ride height.
- Front shocks come pre-assembled for ease of installation.

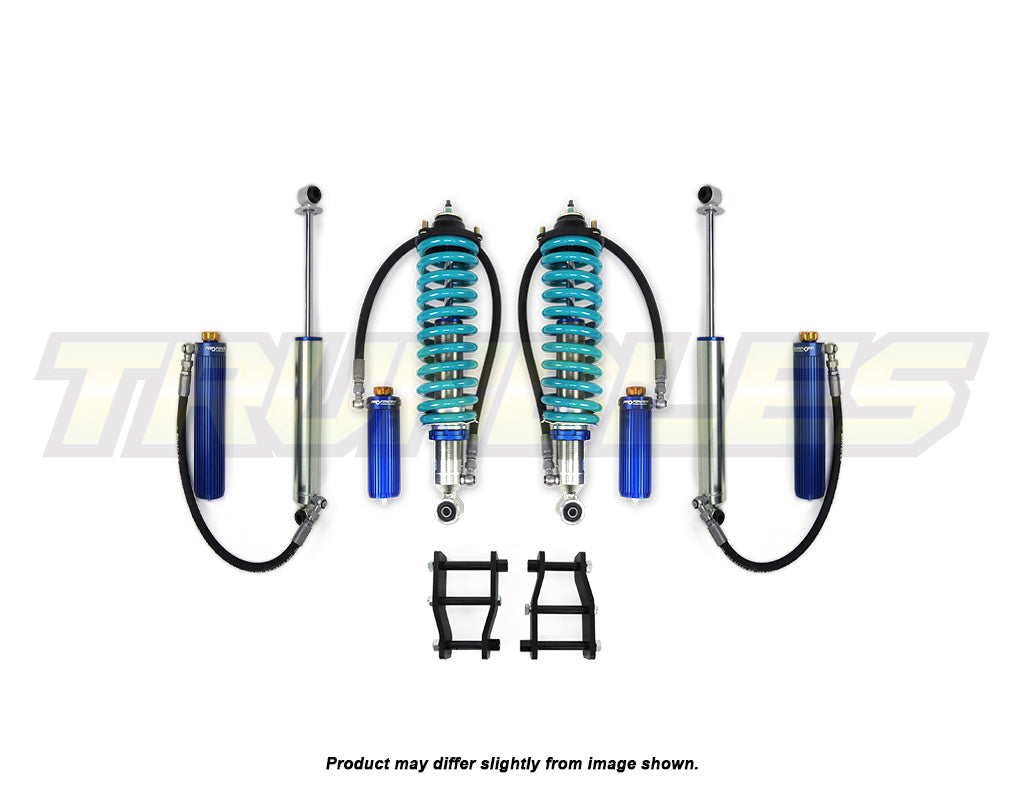

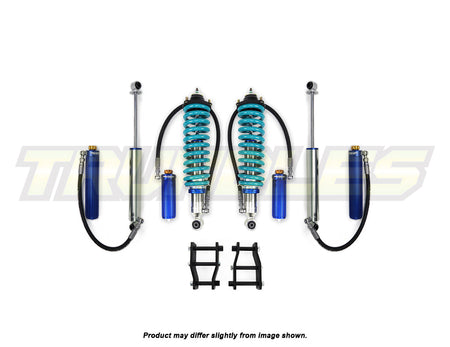

COMPONENTS

Front:
2x Profender MRA Front Shock Absorbers - TSA4-9610A50
1x Pair Dobinsons Front Springs
4x Spring Seat Spacers - see below "Included Spring Seat Spacers" section for more details
2x Removable Spring Seats
2x Trundles Strut Top Mounts - TOP10

Rear:
2x Profender MRA Rear Shock Absorber - MRA4-9010P
1x Pair Trundles 25mm Extended Shackles - EXTSH-11

EXTRAS

Dobinsons Rear Grease-able Shackles - SK21-059
Dobinsons Rear Grease-able Pins - SP59-060
Trundles Bolt In Diff Drop - COL-001

Included Spring Seat Spacers

Profender front shocks for IFS vehicles are supplied with spring seat spacers (collars). These collars fit beneath the spring seat and can be used to increase spring preload and vehicle ride height if additional lift is required in the future.

When you order a pre-assembled strut from us, you do not need to install these collars before fitting the strut. Your struts are assembled to your requested ride height and load rating using a correctly specified coil spring.

If you are ordering shocks only to use with an existing lifted coil spring, you also do not need to install the collars, provided your current springs are correctly specified.

Installing these collars will increase the ride height of your supplied strut. As a guide, the 10 mm collar will typically provide approximately 15 mm of additional vehicle lift, although actual lift will vary depending on vehicle weight, accessories, and spring rate.

The collars are supplied separately and are not required for standard installation.

New Zealand Compliance Notice: If these collars are fitted to alter the spring seat height and increase ride height, LVV certification will be required before the vehicle can be legally used on the road. Customers should consult an LVV certifier before installation.

Shocks installed without the spring seat spacers are generally treated as direct replacement suspension components and typically do not require LVV certification.
